We have been working on some changes to the OpenLOCK system with the Printable Scenery to make it easier to use both within Terrain Tinker and elsewhere. We have come up with some ideas together and are keen for your feedback!
How OpenLOCK began
Printable Scenery introduced OpenLOCK tiles in 2016. These were the first tessellating wall and floor tiles for 3D printed dungeons in the world. As the system developed, OpenLOCK tessellation templates were designed for the development of tessellation shapes, but what is now needed is an easier-to-use sorting system.
Proposed OpenLOCK naming system
OpenLOCK tiles will now be defined by their tile types and dimensions in inches. The main difference between a floor and a wall is that walls have vertical connection points. Unless classified otherwise, all walls are external walls i.e: they only have the OpenLOCK triplex clipping system on one side.
- Wall: All walls are .5” in width at their base, so are categorized by their length x height.
- Floor: All floors are flat and .5” in height, so are categorized by their width x length.
- Curved wall: These are curved walls that are .5” in width, that has a 90 degree curve unless otherwise stated. Their width x length dimensions are based on the curved floor tile they connect to.
- Curved floor: These are curved floors with one side curved 90 degrees unless otherwise stated. Their dimensions are based on the total width x length.
- Roof: Rooves are sloped sections with no standard height or width, so are categorized by their width x height x length.
- Column: All columns are based on .5” x .5” pillars, so are categorized by the orientation of their ports (Corner, Straight, End, T-junction, X-junction) plus height.
- Buttress: Buttresses are columns that have additional structures jutting from one or more sides, so are categorized in the same manner as a Column.
- Special tiles: Unique tiles that don’t easily fit into any above categories
- Terrain: Any large pieces of terrain that is not designed to tesselate or connect, but can be merged.
- Props: Any scene dressing furniture or scatter that is designed to be printed separately and added to the scene
Examples
A Wall becomes 2x2 Wall

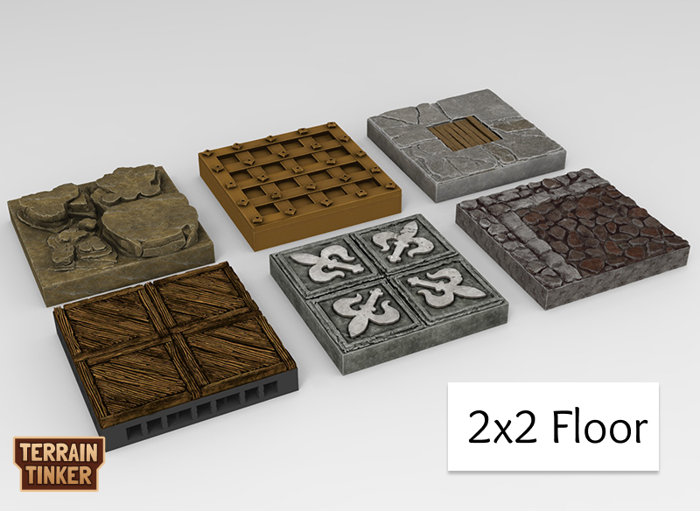

E Floor becomes 2x2 Floor

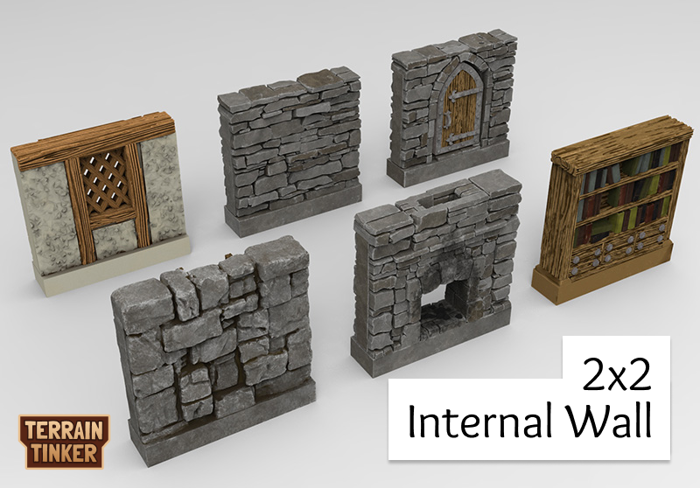

AS Wall becomes 2x2 Internal Wall

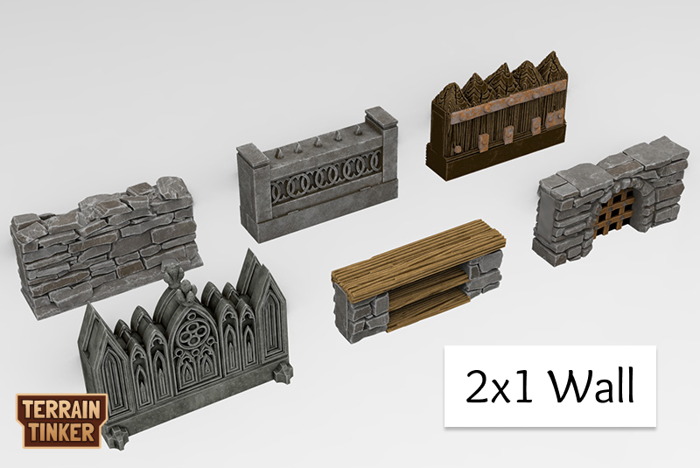

A Low Wall becomes 2x1 Wall

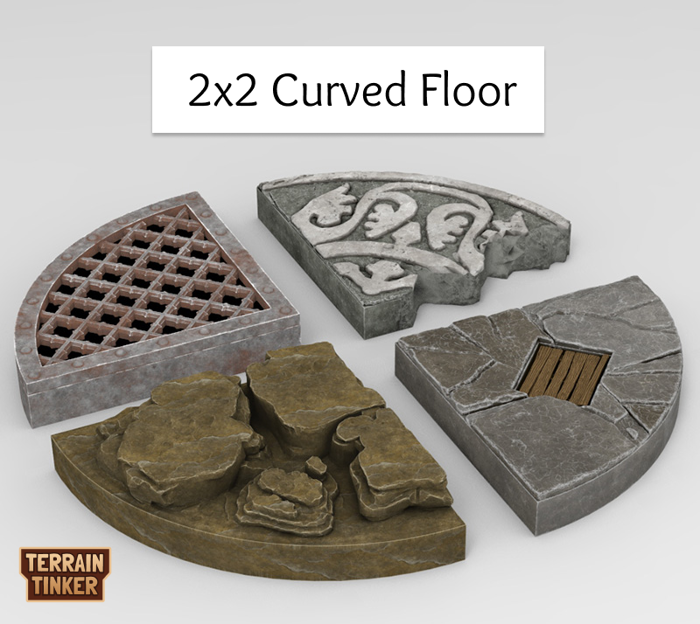

F Floor becomes 2x2 Curved Floor

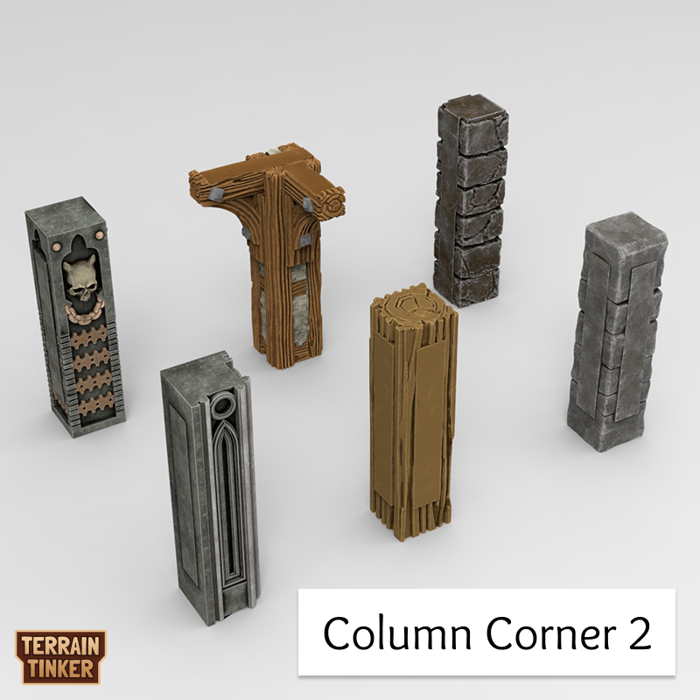

L-Column becomes Column Corner 2

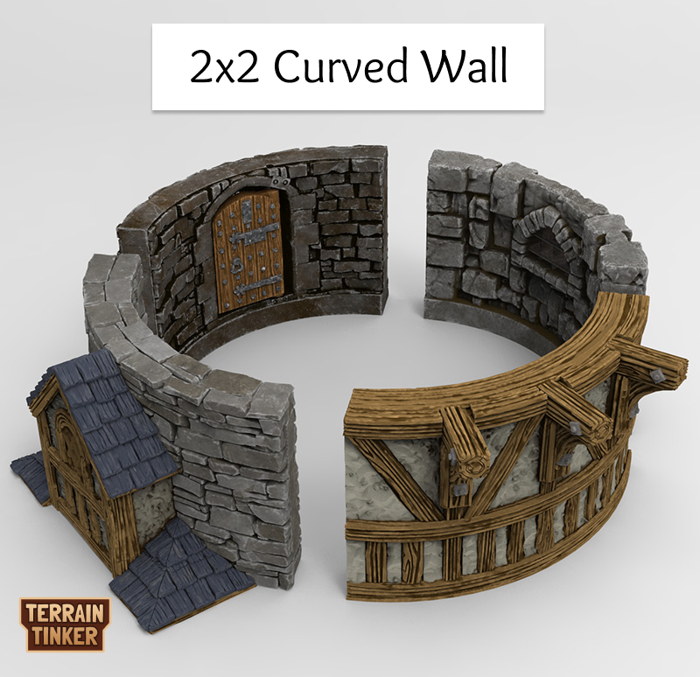

G Wall becomes 2x2 Curved Wall

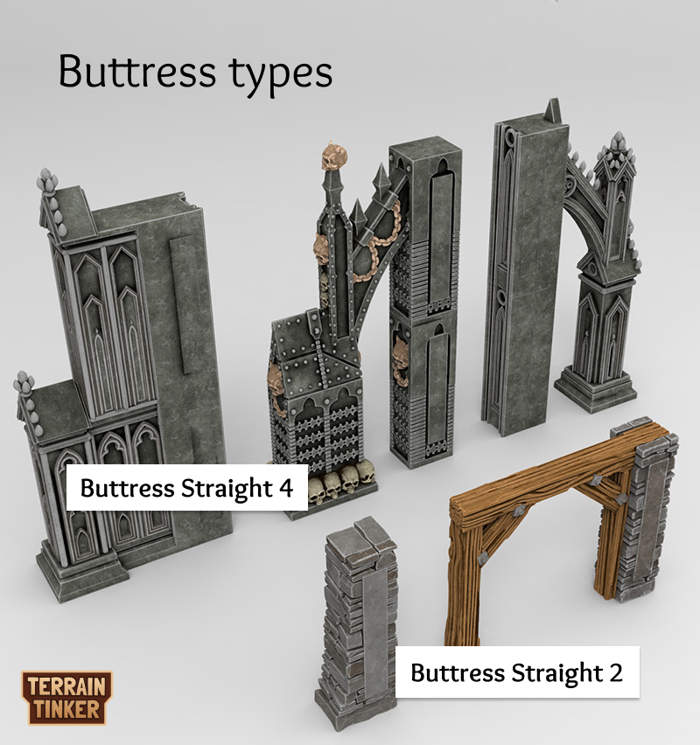

Gothic Buttress Column I becomes Buttress Straight 4. Clorehaven Buttress I becomes Buttress Straight 2
Tell us what you think!
OpenLOCK is a system for everyone to use so we are really keen to get feedback on these changes.
Leave a comment here, on our Discord or in the OpenLOCK Facebook Group and tell us what you think!
